CP29-12100-G

BLOCK STOP

2D
3D

CP29-12100-G

BLOCK STOP

Description

Material: S45C
Heat treated: HRC 32°~38°
Surface finish: Black Oxide.
Application: used with CP12.

Dimension

MODEL NO	Width	Length	Height
CP29-12100-G	35	100	30

2D Download 3D Download

ADD TO INQUIRY

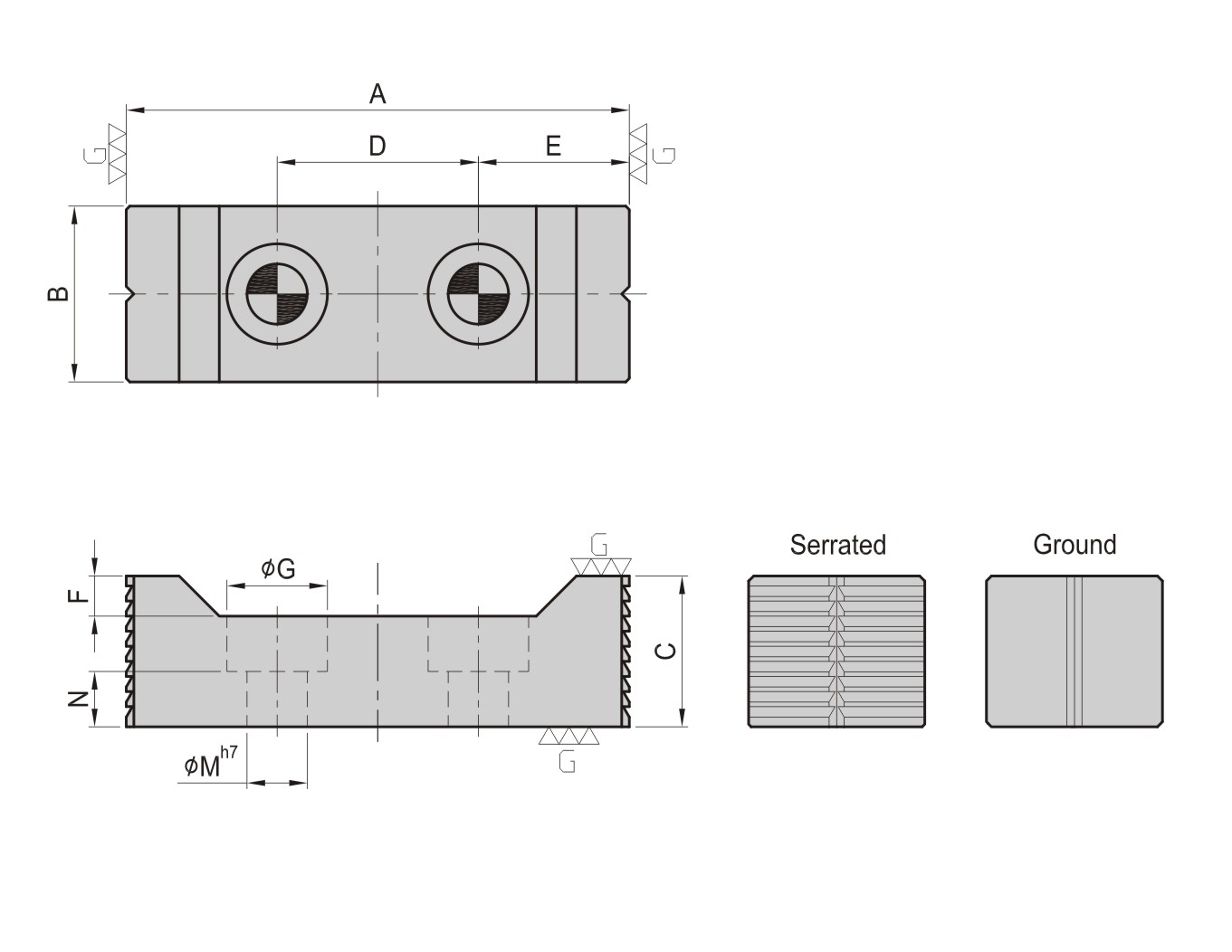

MODEL NO.	A	B	C	D	E	F	G	M	N	kg
CP29-12100-G	100	35	30	40	30	8	20	12	11	0.59

	TYPE
	Ground
